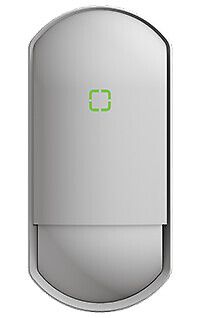

FLX-S-DT-X5 Motion detector
E-Number:
-
HVAC-Number:
-
Product code:
A10050442 FLX-S-DT-X5
SKU:
8006858
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 12 m, 85 deg |
|---|---|
| Sensorityyppi | PIR/MW |
| Peittämissuoja | no |
| Jalusta | CW-G2 (not included) |
| Alarm output | NC, 24 VDC, 0.1 A |
| Fail-Sabocontact NC, NO, DPDT, max current | NC, 24 VDC, 0.1 A |
| Net weight (kg) | 0.131 |
| Width (mm) | 62 |
| Height (mm) | 129 |
| Length (Depth) (mm) | 51 |
| Operating voltage (VDC) | 9,5-16 |
| Operating current, normal (mA) | 11 |
| Operating current, max (mA) | 14 |
| Operating temperature | -20C ... +45C |
Product Description
FLX-S-DT is a grade 2 indoor dual tech motion detector with flexible lens for residential and light commercial security.
Dual technology motion detector (PIR/MW)
Detection range 12 x 12 m
Pet-tolerant
Compliant with the EN-50131 GRADE 2 requirements
Packing info
| Packaging 1 height (mm) | 135 |
|---|---|
| Packaging 1 width (mm) | 67 |
| Packaging 1 length (depth) (mm) | 55 |
| Height of a pallet | 0.6 |
| Type metadata name here. | 1 |
