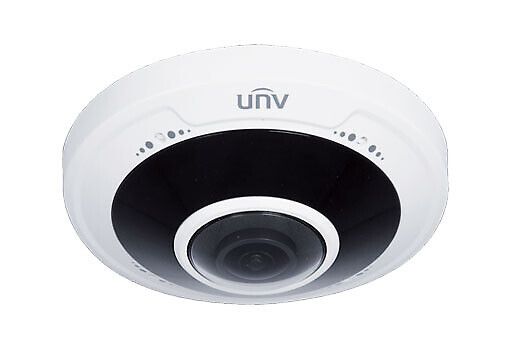

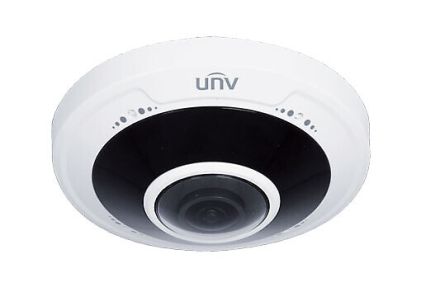

IPC815SB-ADF14K-I0 UNV IP Dome Camera
E-Number:
-
HVAC-Number:
-
Product code:
IPC815SB-ADF14K-I0
SKU:
8006673
This product cannot be purchased online. Please contact sales.
Specifications
| Camera type | Fisheye camera |
|---|---|
| Technology | IP |
| Outdoor installation | Yes |
| Lens type | Fixed |
| IR range | 10m |
| Analog output | No |
| Ingress protection (IP) | IP66 |
| Impact protection (IK) | IK10 |
| Mounting method | Ceiling mount |
| Height (mm) | 43.7 |
| Diameter (mm) | 125 |
| Colour | White |
Product Description
The UNV Prime range includes products with advanced features for superior performance. the Prime- I series has enhanced hardware such as WDR, audio, alarm, SD cards. Available in a variety of mainstream resolutions, such a s 2/4/5/8MP
5MP, 1/2.8" progressive CMOS sensor, Fisheye camera
Color: 0.01 lux @ (F2.0, AGC ON), 0 lux IR
Fixed 1.4mm lens, 120dB WDR, IR light 10m
12 VDC, PoE, operating temperature-30 °C to 50 °C, IP66, IK10
Packing info
| Packaging 1 width (mm) | 135 |
|---|---|
| Packaging 1 length (depth) (mm) | 135 |
| Packaging 1 height (mm) | 135 |
| Packaging 1 weight (kg) | 0.425 |
| Type metadata name here. | 30 |
| Height of a pallet | 0.6 |
