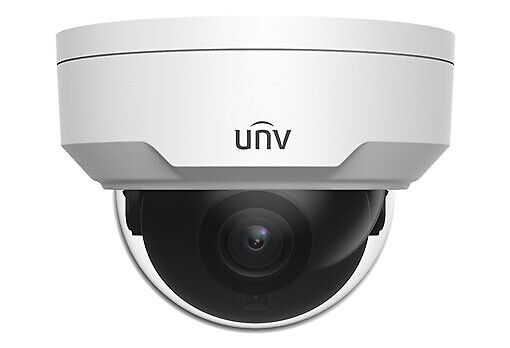

IPC324SB-DF28K-I0 UNV IP Dome Camera
E-Number:
-
HVAC-Number:
-
Product code:
IPC324SB-DF28K-I0
SKU:
8006488
This product cannot be purchased online. Please contact sales.
Specifications
| Technology | IP |
|---|---|
| Camera type | Dome camera |
| Outdoor installation | Yes |
| Resolution | 4 |
| Focal length min | 2.8 |
| Focal length max | 2.8 |
| Lens type | Fixed |
| IR range | 30m |
| Analog output | No |
| Net weight (kg) | 0.42 |
| Width (mm) | 108.7 |
| Height (mm) | 81.1 |
| Ingress protection (IP) | IP67 |
| Impact protection (IK) | IK10 |
Product Description
The UNV Prime range includes products with advanced features for superior performance. the Prime- I series has enhanced hardware such as WDR, audio, alarm, SD cards. Available in a variety of mainstream resolutions, such a s 2/4/5/8MP
4MP, 1/3” progressive CMOS sensor
Color: 0.003 lux @ (F1.6, AGC ON), 0 lux IR
Fixed 2.8mm lens, 120dB WDR
Audio and I/O, IR lights 30 m
12 VDC, PoE, IP67, IK10, operating temperature-30 °C to 60 °C
Packing info
| Packaging 1 height (mm) | 135 |
|---|---|
| Packaging 1 width (mm) | 135 |
| Packaging 1 length (depth) (mm) | 135 |
| Packaging 1 weight (kg) | 0.42 |
| Height of a pallet | 0.6 |
