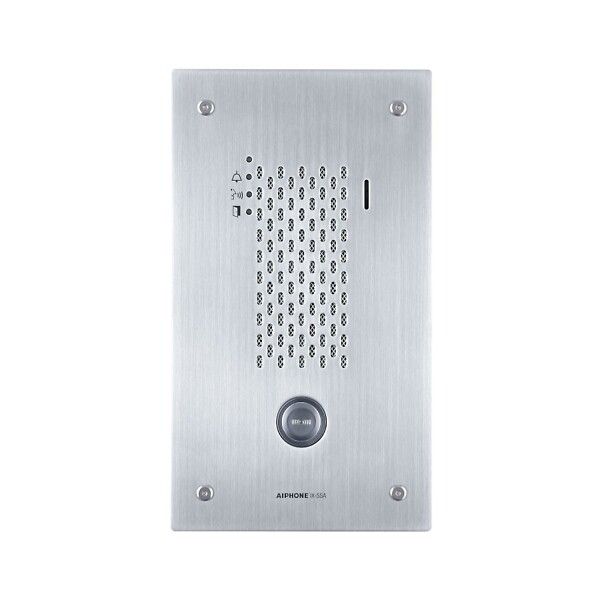

IX-SSA IP audio door station (flush-mounted)
E-Number:
-
HVAC-Number:
-
Product code:
200940 IX-SSA.M
SKU:
8006348
This product cannot be purchased online. Please contact sales.
Specifications
| Width (mm) | 150 |
|---|---|
| Height (mm) | 265 |
| Length (Depth) (mm) | 55 |
| Net weight (kg) | 1.89 |
| Volume | 2.186 |
Product Description
The durable audio door station features a vandal-resistant RST cover and one illuminated call button. The back of the door station includes a Micro-SD card slot (card not included). You can connect a network camera to the second RJ-45 connector in the door station. The large speaker produces powerful high-quality audio.
Includes a flush-mount back box and vandal-resistant cover.
SIP 2.0 compliant.
Power-over-Ethernet (IEEE 802.3af Class 0).
2 PoE interfaces (PoE input and additional camera).
IP65 rated.
IK08 rated against impacts.
6 programmable input relays and 2 programmable output relays.
1 illuminated call button.
Packing info
| Packaging 1 length (depth) (mm) | 303 |
|---|---|
| Packaging 1 width (mm) | 184 |
| Packaging 1 height (mm) | 85 |
| Packaging 1 weight (kg) | 2.343 |
| Package size 1 | 1 |
| Package size1 GTIN code | 4968249541240 |
| Package size1 Volume (litre) | 4.796 |
| Type metadata name here. | 6 |
| Height of a pallet | 0.4 |
