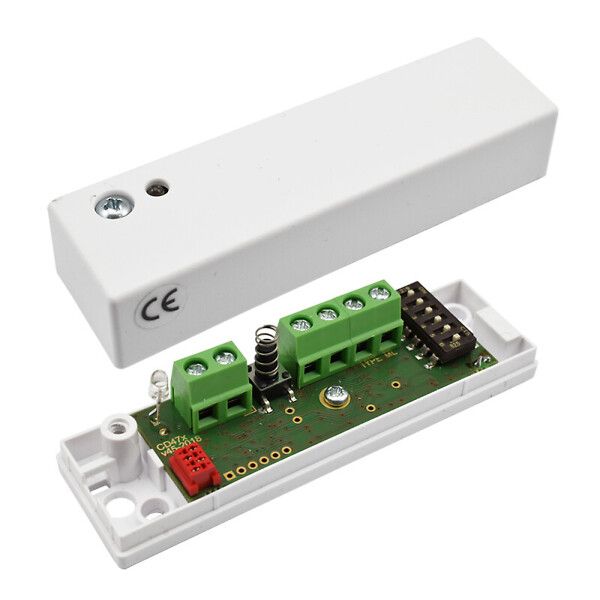

CD-470 Shock detector
E-Number:
-
HVAC-Number:
-
Product code:
CD 470
SKU:
8006241
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 3 m in all materials |
|---|---|
| Sensorityyppi | Shock detector |
| Operating voltage (VDC) | 8 - 15 |
| Operating current, normal (mA) | 7 |
| Ingress protection (IP) | IP42 |
| Width (mm) | 80 |
| Height (mm) | 23 |
| Length (Depth) (mm) | 20 |
| Net weight (kg) | 0.041 |
Product Description
The CD 470 is a shock detector equipped with an intelligent signal processor. It can be installed on the door and window frames or picture frames. It also works in a variety of brick and concrete structures.
Suitable for stone, concrete, metal and wood surfaces
Compliant with the EN 50131 Grade 3 requirements
Packing info
| Packaging 1 length (depth) (mm) | 100 |
|---|---|
| Packaging 1 width (mm) | 37 |
| Packaging 1 height (mm) | 30 |
| Packaging 1 weight (kg) | 0.037 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508457509 |
| Type metadata name here. | 9999 |
| Height of a pallet | 0.6 |
