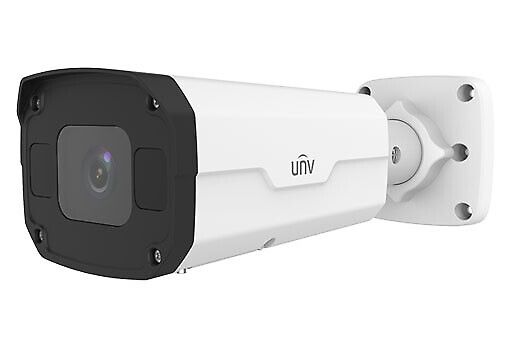

IPC2322SB-DZK-I0 Unv IP Bullet Camera
E-Number:
-
HVAC-Number:
-
Product code:
IPC2322SB-DZK-I0
SKU:
8006191
This product cannot be purchased online. Please contact sales.
Specifications
| Camera type | Bullet camera |
|---|---|
| Technology | IP |
| Outdoor installation | Yes |
| Resolution | 2 |
| Focal length min | 2.7 |
| Focal length max | 13.5 |
| Lens type | Motorized zoom |
| IR range | 50m |
| Analog output | No |
| Ingress protection (IP) | IP67 |
| Impact protection (IK) | IK10 |
| Width (mm) | 85.4 |
| Height (mm) | 86.4 |
| Length (Depth) (mm) | 245.4 |
| Net weight (kg) | 0.92 |
Product Description
The UNV Prime range includes products with advanced features for superior performance. the Prime- I series has enhanced hardware such as WDR, audio, alarm, SD cards. Available in a variety of mainstream resolutions, such a s 2/4/5/8MP
2MP, 1/2.8” progressive CMOS sensor
Color: 0.0005 lux @ (F1.2, AGC ON), 0 lux IR
Motorzoom lens 2.7-13.5mm, 120dB WDR
Audio and I/O, IR lights 50 m
12 VDC, PoE, IP67, IK10, operating temperature-30 °C to 60 °C
Packing info
| Packaging 1 length (depth) (mm) | 299 |
|---|---|
| Packaging 1 width (mm) | 130 |
| Packaging 1 height (mm) | 125 |
| Packaging 1 weight (kg) | 1.12 |
| Height of a pallet | 1.1 |
