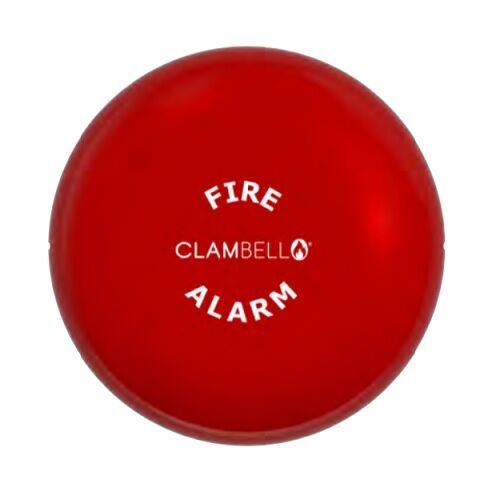

CBE6-RW-024-EN Fire alarm bell IP56
E-Number:
-
HVAC-Number:
-
Product code:
CBE6-RW-024-EN
SKU:
8006173
This product cannot be purchased online. Please contact sales.
Specifications
| Äänen voimakkuus | 96dB(A)@1m |
|---|---|
| Net weight (kg) | 0.499 |
| Width (mm) | 150 |
| Length (Depth) (mm) | 87 |
| Colour | Red |
| Approvals | EN54-3, 2831-CPR-F4579 |
| Operating voltage (VDC) | 20.4 — 26.6 |
| Operating current, max (mA) | 12 |
| Ingress protection (IP) | IP56 |
| Operating temperature | -25°C — +70°C |
| Mounting method | Wall mount, Surface mount |
Product Description
A conventional fire alarm bell with an IP56 rated back box to be installed in the bell line.
A conventional IP56 rated fire alarm bell
Very suitable for special places, where sounds like fire sirens are normally used, the sound of the fire bell stands out better from the others.
Packing info
| Packaging 1 height (mm) | 93 |
|---|---|
| Packaging 1 width (mm) | 160 |
| Packaging 1 length (depth) (mm) | 165 |
| Packaging 1 weight (kg) | 0.58 |
| Height of a pallet | 1.1 |
| Type metadata name here. | 99999 |
