SIGNO 40K SEOS Highest security HID SIGNO SEOS reader.
E-Number:
-
HVAC-Number:
-
Product code:
40KTKS-01-0005R7
SKU:
8006077
This product cannot be purchased online. Please contact sales.
Specifications
| Reader technology | SEOS |
|---|---|
| Protocol | WIEGAND, OSDP |
| Keypad | Yes |
| Mobile ready | Yes |
| Net weight (kg) | 0.14 |
| Width (mm) | 80 |
| Height (mm) | 121.5 |
| Length (Depth) (mm) | 19.5 |
| Operating voltage (VDC) | 12 |
| Operating current, normal (mA) | 80 |
| Operating current, max (mA) | 250 |
| Ingress protection (IP) | IP65 |
Product Description

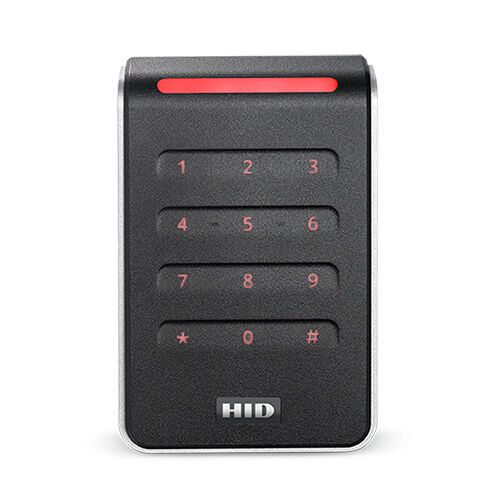

Highest security HID SIGNO SEOS reader.
Reads high security SEOS credentials.
BLE and NFC mobile identification
Automatic calibration according to mounting surface.
The connector is flush with the backplate and allows the reader to be mounted without a mounting plate.
Packing info
| Packaging 1 height (mm) | 45 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 length (depth) (mm) | 185 |
| Packaging 1 weight (kg) | 0.14 |
| Height of a pallet | 0.7 |
