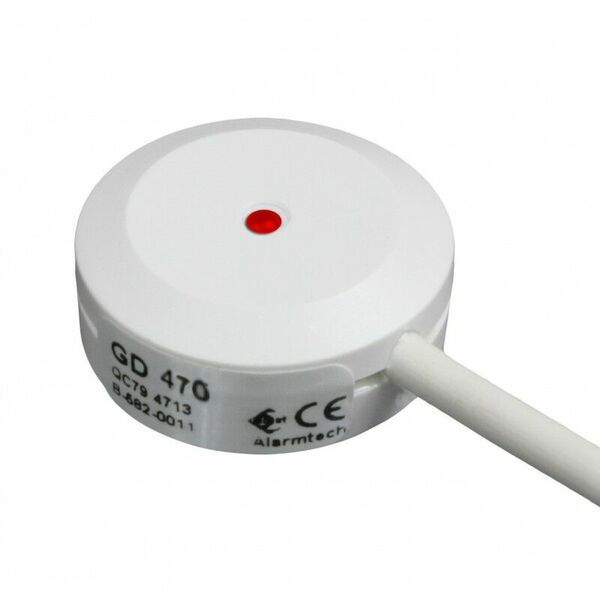

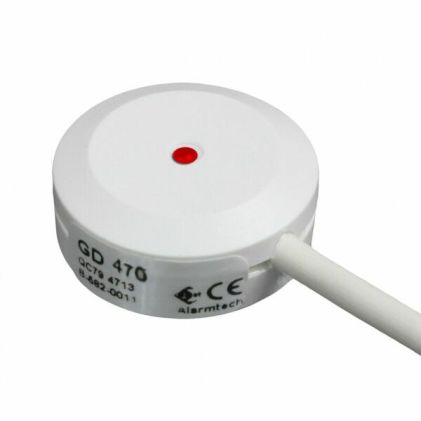

GD470-6 Gluable glass break detector
E-Number:
-
HVAC-Number:
-
Product code:
GD 470-6
SKU:
8005001
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 2 m |
|---|---|
| Operating voltage (VDC) | 8 - 15 |
| Operating current, normal (mA) | 4 |
| Ingress protection (IP) | IP67 |
| Operating temperature | -40 ... +50C |
| Width (mm) | 26 |
| Height (mm) | 26 |
| Length (Depth) (mm) | 11 |
| Net weight (kg) | 0.151 |
| Colour | White |
Product Description
A very reliable glass break detector which is glued to the glass surface and will react only when the glass breaks.
2 m detection radius
For all types of glass, detects hits and cuts
Relay output, NC
Packing info
| Packaging 1 length (depth) (mm) | 200 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 height (mm) | 25 |
| Packaging 1 weight (kg) | 0.151 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508454928 |
| Height of a pallet | 0.5 |
