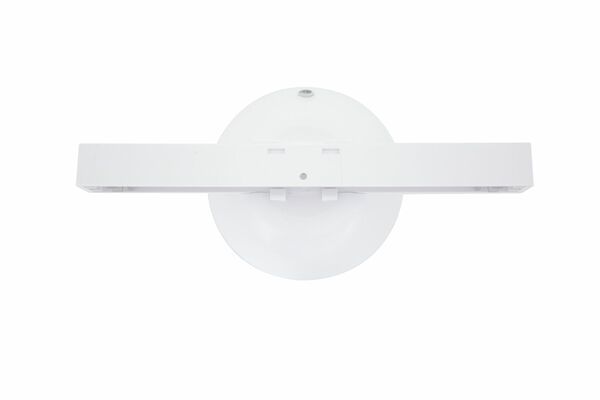

N20 20 m exit sign luminaire frame and battery
E-Number:
-
HVAC-Number:
-
Product code:
N20/14168
SKU:
8004988
This product cannot be purchased online. Please contact sales.
Specifications
| Viewing distance (m) | 20 |
|---|---|
| Battery capacity (mAh) | 1900 |
| Battery type | NIMH 1,2/1900 |
| Operating temperature | -25°C - 40°C |
| Operating voltage (VDC) | 24-40 |
| Operating voltage (VAC) | 20 - 40 |
| Ingress protection (IP) | IP20, IP55 |
| Mounting method | Ceiling mount, Recessed/flush mount, Surface mount |
| Installation | surface/flush |
| Width (mm) | 195.4 |
| Height (mm) | 172.5 |
| Net weight (kg) | 0.22 |
| Colour | White |
| Volume | 1.178 |
Product Description
The N20 is a new exit sign luminaire for 20 m viewing distance. It is an addressable intelligent unit with an integrated NiMH battery which uses the latest long-life LED technology. It requires one conductor pair, which is connected to the round mounting base. After connecting the conductor pair, screw the luminaire onto the mounting base
Battery included.
Also available in black. Check the price and availability.
Packing info
| Packaging 1 length (depth) (mm) | 230 |
|---|---|
| Packaging 1 width (mm) | 110 |
| Packaging 1 height (mm) | 60 |
| Packaging 1 weight (kg) | 0.22 |
| Package size 1 | 1 |
| Package size1 Volume (litre) | 5.525 |
| Height of a pallet | 1.2 |
