NEPTO-3K/COMP/1A Emergency lighting panel Nepto-3K Comp/1A
E-Number:
-
HVAC-Number:
-
Product code:
NEPTO-3K/COMP/1A
SKU:
8004686
This product cannot be purchased online. Please contact sales.
Specifications
| Number of loops | 1 |
|---|---|
| Centers on the same buss | 12 |
| Battery capacity (Ah) | 20 |
| Operating current, normal (mA) | 60 |
| Width (mm) | 380 |
| Height (mm) | 580 |
| Length (Depth) (mm) | 100 |
| Colour | White |
Product Description
A prime example of Finnish product development, a third generation emergency lighting panel manufactured in Finland. A quick deployment with the OLED display and control buttons, which also performs automatic address line analysis. Nepto-3K from 127 to 3000 addresses.
Quick deployment with the OLED display and control buttons
The panel includes 1 integrated address line with 127 addresses, which can be expanded to a total of 254 addresses with an additional line card (NEPTO-LOOP)
You can interconnect a maximum of 12 panels in the same address line

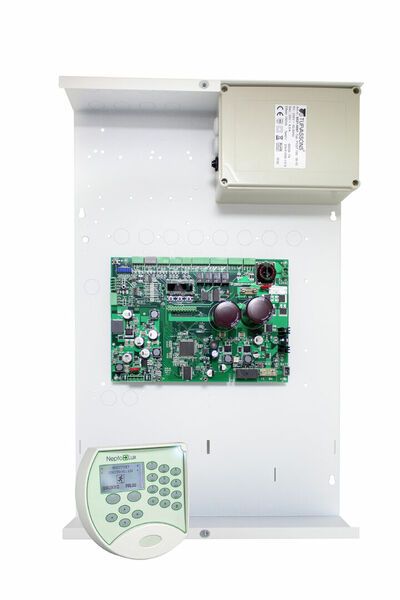

Includes an enclosure, motherboard, transformer and control panel
Packing info
| Packaging 1 length (depth) (mm) | 300 |
|---|---|
| Packaging 1 width (mm) | 500 |
| Packaging 1 height (mm) | 700 |
| Packaging 1 weight (kg) | 6 |
| Package size 1 | 1 |
| Package size1 GTIN code | 06418391000365 |
