AT-4101.2201 Complete junction box for installation of alarm and access systems.
E-Number:
-
HVAC-Number:
-
Product code:
4101.2201
SKU:
8004654
This product cannot be purchased online. Please contact sales.
Specifications
| External connections | Slot connectors for 10 pairs of 0.4 - 0.7 mm conductors |
|---|---|
| Width (mm) | 134 |
| Height (mm) | 72 |
| Length (Depth) (mm) | 50 |
| Net weight (kg) | 0.18 |
| Colour | White |
| Enclosure | White flame-retardant plastic (UL 94 U-0) |
Product Description

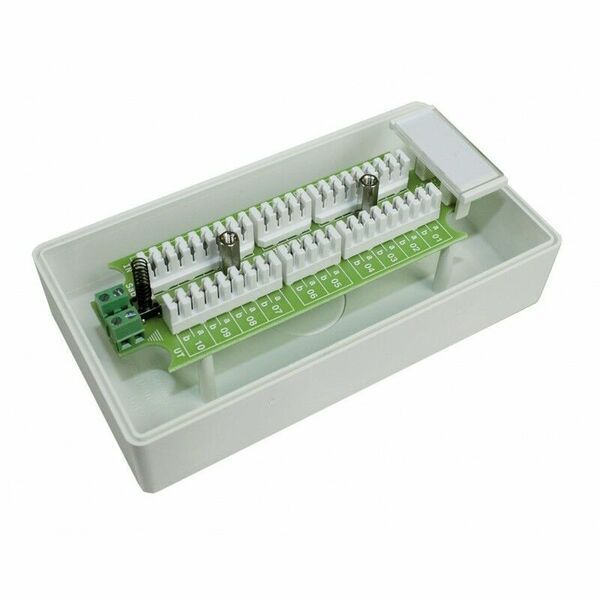

The terminal block has 10 parallel connected terminals, as well as 4 separate connections, of which 2 connections are intended for anti-tamper switch connection and 2 for cable shield. Label terminal on the board included. The box is flame-retardant according to UL 94 V-0.
A junction box with 10 pairs of conductors, anti-tamper switch
Slot connectors
Packing info
| Packaging 1 length (depth) (mm) | 142 |
|---|---|
| Packaging 1 width (mm) | 77 |
| Packaging 1 height (mm) | 60 |
| Packaging 1 weight (kg) | 0.18 |
| Package size 1 | 1 |
| Package size1 GTIN code | 7350037610936 |
| Height of a pallet | 0.6 |
