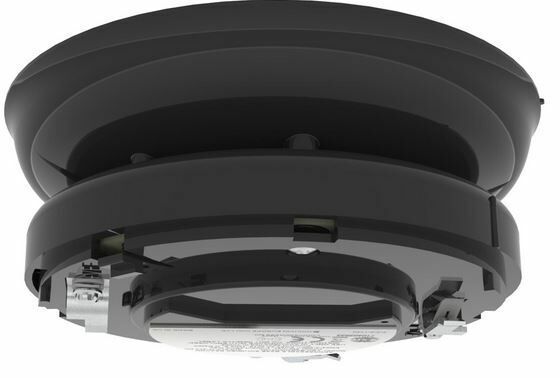

YBO-BS/BLACK Base sounder black
E-Number:
-
HVAC-Number:
-
Product code:
YBO-BS/BLACK
SKU:
8004411
This product cannot be purchased online. Please contact sales.
Specifications
| Äänen voimakkuus | 50 — 98dB(A)@1m |
|---|---|
| Detector type | Point detector |
| Number of signal types | 51 |
| Operating voltage (VDC) | 17 — 41 |
| Operating current, normal (mA) | 0.2 |
| Operating current, max (mA) | 16 |
| Ingress protection (IP) | IP21 |
| Impact protection (IK) | N/A |
| Operating temperature | -10°C — +50°C |
| Mounting method | Ceiling mount |
| Width (mm) | 113 |
| Height (mm) | 51 |
| Length (Depth) (mm) | 51 |
| Net weight (kg) | 0.112 |
| Colour | Black |
| Approvals | EN54-3, 0832-CPD-0374 |
Product Description
An addressable base sounder for local alarms
7 different alarm tones (the tones are pre-selected, see the instructions)
Different alarm tones for alarm and pre-alarm
Can be grouped
Only for addressable sensors
Mounting base (optional)
60 base sounders can ring simultaneously in the same loop, provided that the sound level is 85 dB
Packing info
| Packaging 1 length (depth) (mm) | 120 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 height (mm) | 45 |
| Packaging 1 weight (kg) | 0.137 |
| Type metadata name here. | 1632 |
| Height of a pallet | 1.1 |
Documents and links
