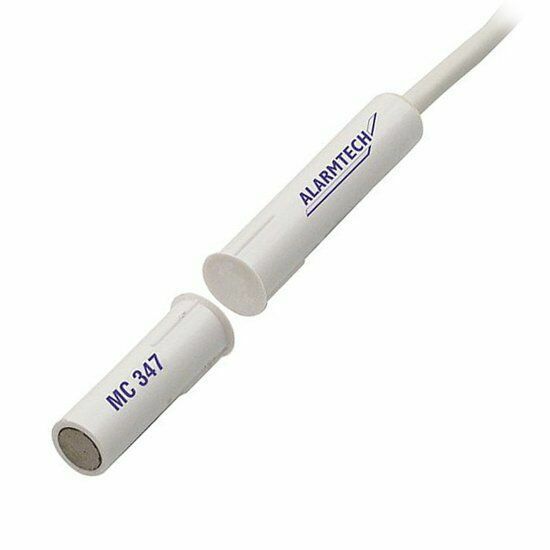

MC347 Magnetic contact
E-Number:
-
HVAC-Number:
-
Product code:
MC 347
SKU:
8003610
This product cannot be purchased online. Please contact sales.
Specifications
| Operating current, normal (mA) | 500 |
|---|---|
| Mounting method | Recessed/flush mount |
| Installation | Flush |
| Width (mm) | 9 |
| Height (mm) | 9 |
| Length (Depth) (mm) | 36 |
| Net weight (kg) | 0.08 |
| Approvals | EN 50131 grade 2 |
| Enclosure | White plastic |
Product Description
A magnetic contact for doors or windows
Flush mounting
2 N/C contacts and tamper protection
Connection cable 2 m
Operating distance 12 mm, +/- 3 mm
Compliant with the EN 50131 Grade 2 requirements
Packing info
| Packaging 1 length (depth) (mm) | 175 |
|---|---|
| Packaging 1 width (mm) | 93 |
| Packaging 1 height (mm) | 25 |
| Packaging 1 weight (kg) | 0.075 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508430977 |
| Height of a pallet | 0.6 |
