MC346 Magnetic contact
E-Number:
-
HVAC-Number:
-
Product code:
MC 346
SKU:
8003609
This product cannot be purchased online. Please contact sales.
Specifications
| Operating current, normal (mA) | 500 |
|---|---|
| Operating temperature | -40°C ... +70°C |
| Mounting method | Recessed/flush mount |
| Installation | Flush |
| Width (mm) | 9 |
| Height (mm) | 9 |
| Length (Depth) (mm) | 36 |
| Net weight (kg) | 0.06 |
| Approvals | EN 50131 grade 2 |
| Enclosure | White plastic |
Product Description

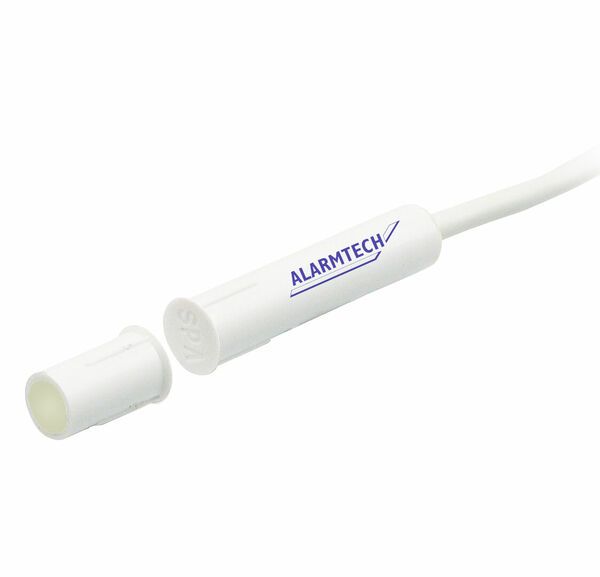

A magnetic contact for doors or windows
Flush mounting
Change-over contact and tamper protection
2 m connection cable
Operating distance 12 mm, +/- 3 mm
Compliant with the EN 50131 Grade 2 requirements
Packing info
| Packaging 1 length (depth) (mm) | 170 |
|---|---|
| Packaging 1 width (mm) | 90 |
| Packaging 1 height (mm) | 20 |
| Packaging 1 weight (kg) | 0.065 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508430939 |
| Height of a pallet | 0.6 |
