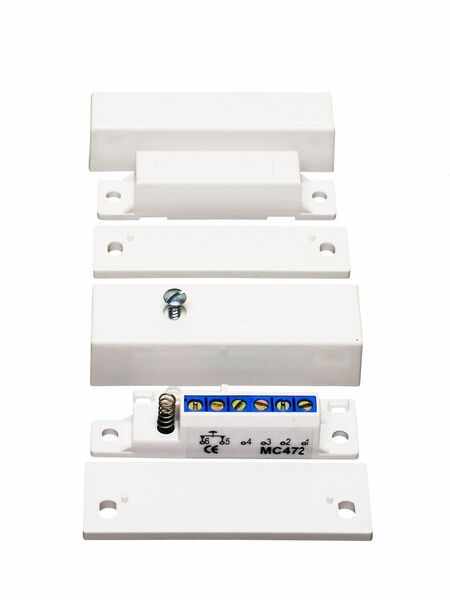

MC472 Magnetic contact
E-Number:
-
HVAC-Number:
-
Product code:
MC 472
SKU:
8003607
This product cannot be purchased online. Please contact sales.
Specifications
| Alarm output | Change-over, 48 VDC, 0.5 A, 10 VA |
|---|---|
| Fail-Sabocontact NC, NO, DPDT, max current | NC, 48 VDC, 0.5 A, 10 VA |
| Ingress protection (IP) | IP43 |
| Operating temperature | -40°C ... +70°C |
| Mounting method | Surface mount |
| Installation | Surface |
| Width (mm) | 15 |
| Height (mm) | 20 |
| Length (Depth) (mm) | 65 |
| Net weight (kg) | 0.06 |
| Approvals | EN 50131 grade 3 |
| Enclosure | White plastic |
Product Description
A magnetic contact for doors or windows
Surface mounting
Change-over contact and tamper protection
Screw terminals
Operating distance 16 mm, +/- 3 mm
Compliant with the EN 50131 Grade 3 requirements
Packing info
| Packaging 1 length (depth) (mm) | 175 |
|---|---|
| Packaging 1 width (mm) | 93 |
| Packaging 1 height (mm) | 20 |
| Packaging 1 weight (kg) | 0.061 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508431257 |
| Height of a pallet | 0.6 |
