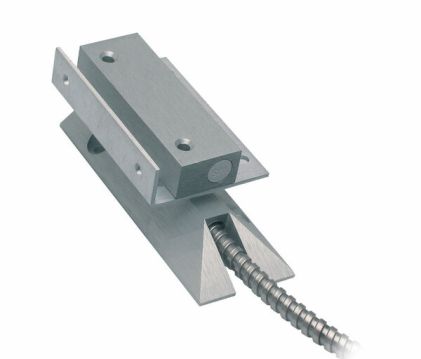

MC270-S56 Magnetic contact
E-Number:
-
HVAC-Number:
-
Product code:
MC 270-S56
SKU:
8003604
This product cannot be purchased online. Please contact sales.
Specifications
| Alarm output | NC, 48 VDC, 0.5 A, 10 VA |
|---|---|
| Fail-Sabocontact NC, NO, DPDT, max current | NC, 48 VDC, 0.5 A, 10 VA |
| Ingress protection (IP) | IP67 |
| Operating temperature | -40°C ... +70°C |
| Mounting method | Surface mount |
| Installation | Surface |
| Width (mm) | 104 |
| Height (mm) | 40 |
| Length (Depth) (mm) | 15 |
| Net weight (kg) | 0.4 |
| Approvals | EN 50131 grade 3 |
| Enclosure | Aluminium |
Product Description
A magnetic contact for heavy doors and gates
Surface mounting
N/C contact and tamper protection
1 m armoured cable
Operating distance 34 mm, +/- 20%
Compliant with the EN 50131 Grade 3 requirements
Packing info
| Packaging 1 length (depth) (mm) | 205 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 height (mm) | 40 |
| Packaging 1 weight (kg) | 0.4 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508430564 |
| Height of a pallet | 0.6 |
