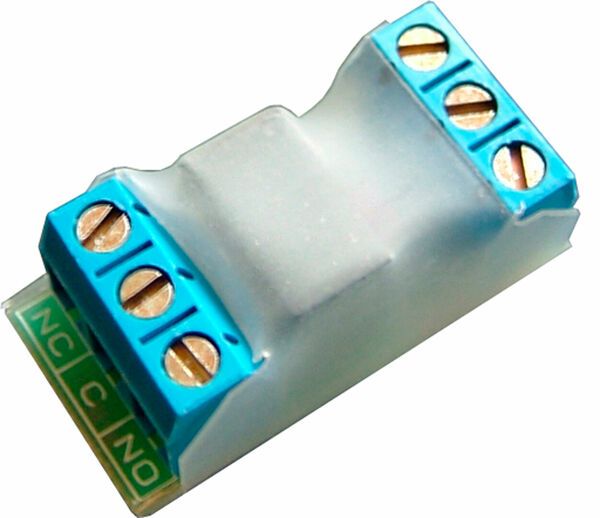

RC-2 Relay card
E-Number:
-
HVAC-Number:
-
Product code:
RC 2
SKU:
8003454
This product cannot be purchased online. Please contact sales.
Specifications
| External connections | Screw terminal |
|---|---|
| Operating current, normal (mA) | 16 |
| Operating temperature | Operating temperature: -40 ... +70°C |
| Width (mm) | 16 |
| Height (mm) | 13 |
| Length (Depth) (mm) | 37 |
| Net weight (kg) | 0.018 |
Product Description
A compact additional relay
A relay card with a 48 VDC/1A/30VA change-over relay
Power consumption 16 mA (12 VDC)
Control voltage 9 - 30 VDC
Packing info
| Packaging 1 length (depth) (mm) | 94 |
|---|---|
| Packaging 1 width (mm) | 90 |
| Packaging 1 height (mm) | 7 |
| Packaging 1 weight (kg) | 0.03 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508450258 |
| Type metadata name here. | 9999 |
| Height of a pallet | 0.3 |
