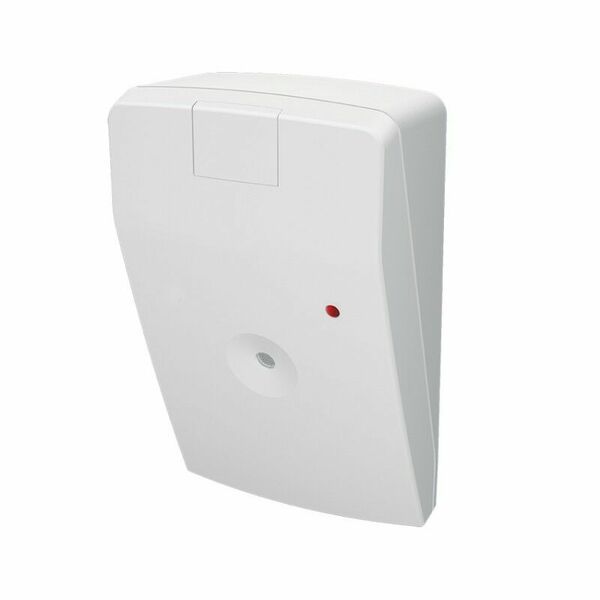

AD-800AM Glass break detector
This product cannot be purchased online. Please contact sales.
| Coverage | 9 m, 165 degrees |
|---|---|
| Sensorityyppi | Acoustic glass break |
| Peittämissuoja | yes |
| Operating current, normal (mA) | 12 |
| Operating temperature | käyttölämpötila: +5 ... +40°C |
| Width (mm) | 68 |
| Length (Depth) (mm) | 39 |
| Net weight (kg) | 0.124 |
AD 800-AM is a new generation of acoustic glass break detector with Anti-Mask function which meets the requirements for grade 3 of the new standard EN 50131-2-7-2:2013. The detector is based on the latest microprocessor technology and has a number of advanced algorithms connected to the acoustics of the room (Digital Room Compensation, DRC). Thanks to these algorithms, the detector can distinguish a glass breakage signal from other interferences and boasts high immunity to false alarms. AD 800-AM has a newly developed active Anti-Mask function (overlay protection) with separate relay output for enhanced security. If attempts are made to tamper with the microphone or sensor, an Anti-Mask alarm is triggered.
New generation acoustic glass break detector
Equipped with an anti-masking function
Suitable for standard, tempered and laminated glass
Compliant with the EN 50131 Grade 3 requirements
Intended for indoor installation, the device can be mounted either on a ceiling or wall, opposite to the protected glass.
The detection range spans 165°, which means that one detector can monitor multiple windows in a room
| Packaging 1 length (depth) (mm) | 113 |
|---|---|
| Packaging 1 width (mm) | 69 |
| Packaging 1 height (mm) | 42 |
| Packaging 1 weight (kg) | 0.094 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508451903 |
| Type metadata name here. | 9999 |
| Height of a pallet | 0.7 |
