MC240-S56 Magnetic contact
E-Number:
-
HVAC-Number:
-
Product code:
MC 240-S56
SKU:
8003281
This product cannot be purchased online. Please contact sales.
Specifications
| Alarm output | NC, 48 VDC, 0.5 A, 10 VA |
|---|---|
| Ingress protection (IP) | IP67 |
| Width (mm) | 40 |
| Height (mm) | 15 |
| Length (Depth) (mm) | 104 |
| Net weight (kg) | 0.396 |
| Enclosure | Aluminium |
Product Description

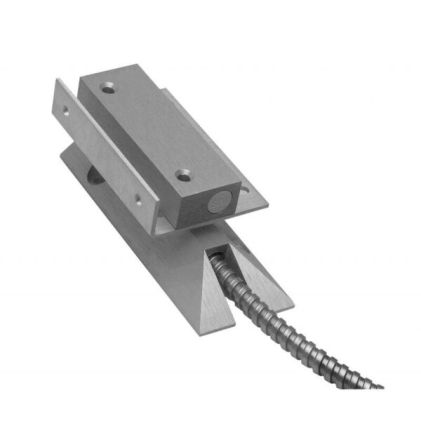

A magnetic contact for heavy doors and gates
Surface mounting
N/C contact and tamper protection
6 m armoured cable
Operating distance 34 mm in metal
Compliant with the EN 50131 Grade 2 requirements
Packing info
| Packaging 1 length (depth) (mm) | 210 |
|---|---|
| Packaging 1 width (mm) | 120 |
| Packaging 1 height (mm) | 50 |
| Packaging 1 weight (kg) | 0.322 |
| Package size 1 | 1 |
| Package size1 GTIN code | 5901508430328 |
| Type metadata name here. | 99999 |
| Height of a pallet | 0.6 |
