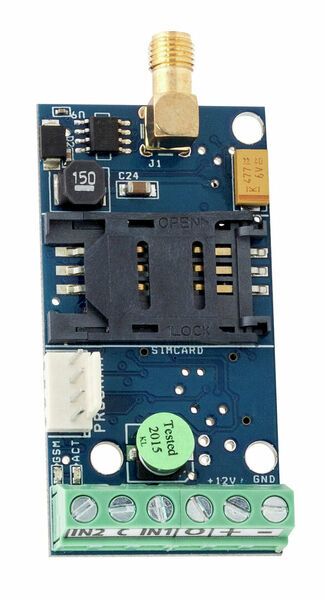

EASYCON-GSM Alarm transmitter
E-Number:
-
HVAC-Number:
-
Product code:
EASYCON-GSM
SKU:
8002816
This product cannot be purchased online. Please contact sales.
Specifications
| External connections | 2 alarm inputs, 1 output (OC max. 20 V / 400 mA), magnetic antenna with a 2 m connection cable |
|---|---|
| Operating voltage (VDC) | 9-20 VDC |
| Operating current, normal (mA) | 25 |
| Operating current, max (mA) | 700 |
| Operating temperature | 0 ... +40°C |
| Width (mm) | 61 |
| Length (Depth) (mm) | 31 |
| Net weight (kg) | 0.09 |
Product Description
-
2 alarm inputs, 1 output
Programming is done with text messages, PC program or Android app.
Packing info
| Packaging 1 length (depth) (mm) | 13 |
|---|---|
| Packaging 1 width (mm) | 13 |
| Packaging 1 height (mm) | 4 |
| Type metadata name here. | 999 |
| Height of a pallet | 0.2 |
Documents and links
