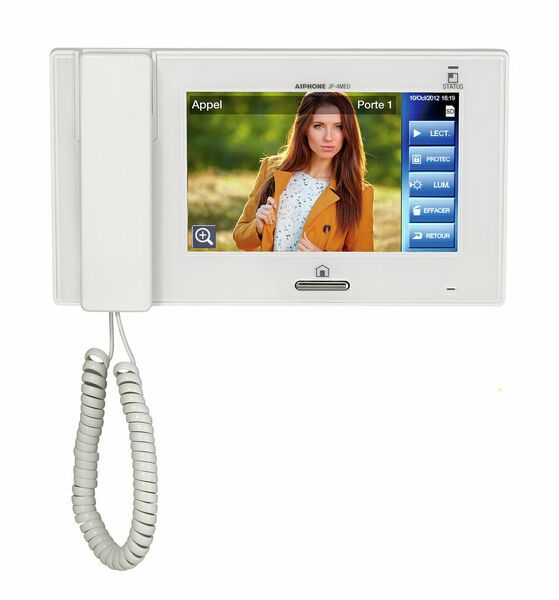

JP-4MED Master station
E-Number:
-
HVAC-Number:
-
Product code:
JP-4MED.M
SKU:
8002678
This product cannot be purchased online. Please contact sales.
Specifications
| Operating current, normal (mA) | 340 |
|---|---|
| Net weight (kg) | 1.358 |
| Volume | 1.775 |
Product Description
The JP series system can include only one JP-4MED master station, the other stations are JP-4HD sub stations. Use generic cabling (CAT5E/6) between the master and sub stations. Connect the power supply to the master station and use the generic cabling to power the two sub stations. The number of required power supplies depends on the system configuration. Connect the door stations (1-4 units) to the master station with their own 2-pin cable.
7" touch screen, hands-free and handset.
Operating voltage: 24VDC 2A (PS-2420DM).
RJ45 connection between the master and sub stations.
2-pin cable between the door station and the master station.
Packing info
| Packaging 1 length (depth) (mm) | 270 |
|---|---|
| Packaging 1 width (mm) | 200 |
| Packaging 1 height (mm) | 80 |
| Packaging 1 weight (kg) | 1.35 |
| Package size 1 | 1 |
| Package size1 GTIN code | 4968249596158 |
| Package size1 Volume (litre) | 4.24 |
| Type metadata name here. | 99999 |
| Height of a pallet | 0.3 |
