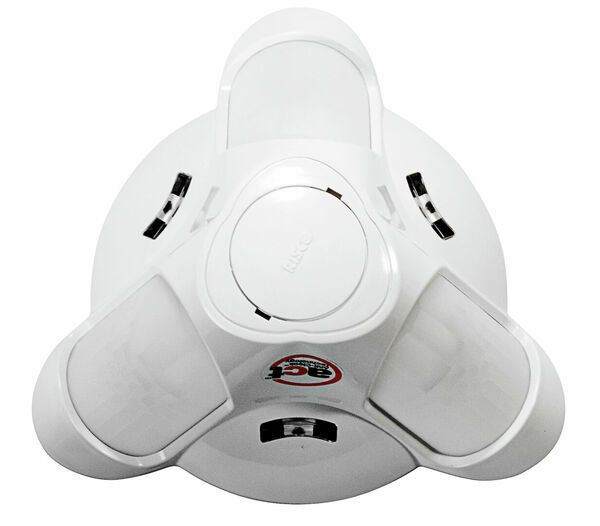

RK200DTG3 Industrial LuNAR ceiling detector
E-Number:
-
HVAC-Number:
-
Product code:
RK200DTG300D
SKU:
8002226
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 18 m diameter when installed at the height of 2.7 - 8.6 m |
|---|---|
| Sensorityyppi | 3 x PIR + MW |
| Peittämissuoja | Yes |
| Alarm output | NC, 100 mA, 24 VDC |
| Fail-Sabocontact NC, NO, DPDT, max current | NC, 500 mA, 24 VDC |
| Operating voltage (VDC) | 9-16 |
| Operating current, normal (mA) | 20 |
| Operating current, max (mA) | 40 |
| Operating temperature | -20 ... +55 C |
| Width (mm) | 99 |
| Height (mm) | 99 |
| Length (Depth) (mm) | 194 |
| Net weight (kg) | 0.524 |
Product Description
Dual technology detector PIR/MW for ceiling mounting
Detection range diameter 22 m
Maximum installation height 8.6 m
A dual technology detector for high spaces
Compliant with the EN-50131 GRADE 3 requirements
Operating temperature -20°C ... +55°C
Packing info
| Type metadata name here. | 99999 |
|---|---|
| Height of a pallet | 0.7 |
