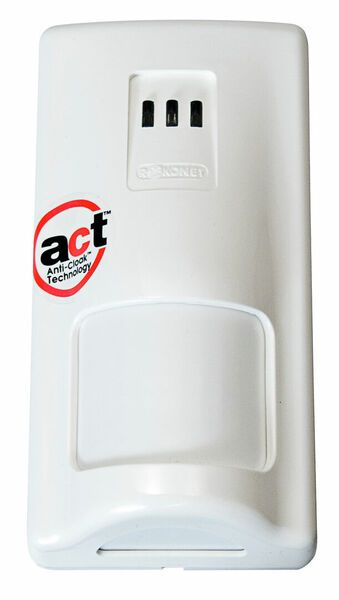

RK825DTG300D IWISE-DT25G3 dual technology motion detector
E-Number:
-
HVAC-Number:
-
Product code:
RK825DTG300D
SKU:
8002155
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 25 x 25 m |
|---|---|
| Sensorityyppi | PIR & MW |
| Peittämissuoja | yes |
| Jalusta | RA900000A or RA910000A (not included) |
| Operating voltage (VDC) | 9-16 |
| Operating current, normal (mA) | 17 |
| Operating current, max (mA) | 40 |
| Operating temperature | -10 ... +55 C |
| Width (mm) | 62 |
| Height (mm) | 128 |
| Length (Depth) (mm) | 47 |
| Net weight (kg) | 0.153 |
Product Description
Dual technology detector PIR/MW with anti-masking
Detection range 25 m 85°
PIR/MW sensors
The ACT ensures smooth operation
Compliant with the EN-50131 GRADE 3 requirements
Packing info
| Type metadata name here. | 1 |
|---|---|
| Height of a pallet | 0.6 |
Documents and links
