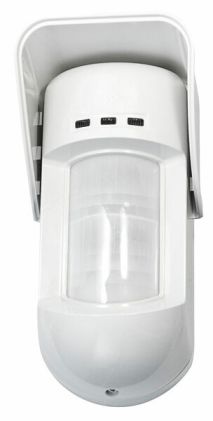

RK315DT0000C Outdoor motion detector
E-Number:
-
HVAC-Number:
-
Product code:
RK315DT0000C
SKU:
8002150
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 12 x 12 m |
|---|---|
| Sensorityyppi | 2 x PIR & MW |
| Peittämissuoja | yes |
| Alarm output | NC, 100 mA 24 VDC |
| Fail-Sabocontact NC, NO, DPDT, max current | NC, 100 mA 24 VDC |
| Net weight (kg) | 1.2 |
| Width (mm) | 123 |
| Height (mm) | 230 |
| Length (Depth) (mm) | 124 |
| Operating voltage (VDC) | 9-16 |
| Operating current, normal (mA) | 30 |
| Operating current, max (mA) | 42 |
| Operating temperature | -30°C...+60°C |
Product Description
Passive infrared detector for outdoors.
Detection range 15 m/90° (includes additional lenses for 15/23 m corridor and 15 m pet detection)
Dual pyro + microwave sensors, anti-masking protection
Packing info
| Packaging 1 height (mm) | 155 |
|---|---|
| Packaging 1 width (mm) | 125 |
| Packaging 1 length (depth) (mm) | 245 |
| Height of a pallet | 1.1 |
