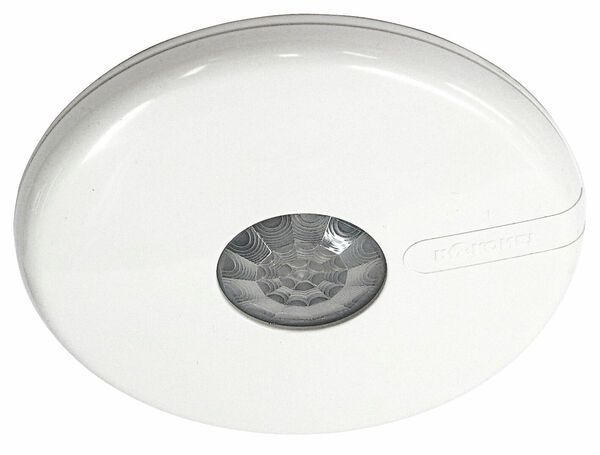

RK150DTG300D LUNAR DT ceiling detector
E-Number:
-
HVAC-Number:
-
Product code:
RK150DTG300D
SKU:
8002146
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 12 m 360°, installation height 2.8 - 4.0 m |
|---|---|
| Sensorityyppi | PIR / MW |
| Peittämissuoja | Yes |
| Jalusta | No |
| Alarm output | NC, 24 VDC, 200 mA |
| Fail-Sabocontact NC, NO, DPDT, max current | NC, 24 VDC, 200 mA |
| Operating voltage (VDC) | 9-16 |
| Operating current, normal (mA) | 16 |
| Operating current, max (mA) | 41 |
| Operating temperature | -20°C ... +55°C |
| Width (mm) | 135 |
| Height (mm) | 135 |
| Length (Depth) (mm) | 27 |
| Net weight (kg) | 0.45 |
Product Description
Dual technology detector PIR/MW for the ceiling
Detection range 13 m in diameter when installed at the height of 4 m
PIR/MW detectors
Anti-masking
Compliant with the EN-50131 GRADE 3 requirements
Packing info
| Packaging 1 length (depth) (mm) | 180 |
|---|---|
| Packaging 1 width (mm) | 170 |
| Packaging 1 height (mm) | 112 |
| Type metadata name here. | 99999 |
| Height of a pallet | 0.6 |
