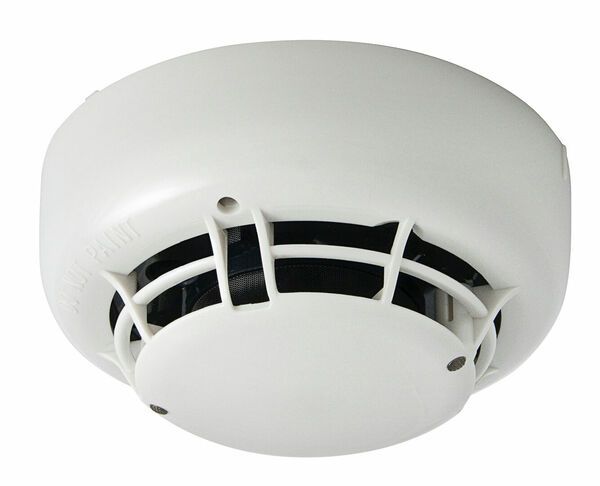

ALN-E/WHT Photoelectric smoke sensor
E-Number:
-
HVAC-Number:
-
Product code:
ALN-E/WHT
SKU:
8002047
This product cannot be purchased online. Please contact sales.
Specifications
| Detector type | Point detector |
|---|---|
| Removable chamber | Yes, CHAMBER-ALN/ACC |
| Operating voltage (VDC) | 17 — 41 |
| Operating current, normal (mA) | 0.4 |
| Operating current, max (mA) | 9.1 |
| Ingress protection (IP) | IP42 |
| Impact protection (IK) | N/A |
| Operating temperature | -25°C — +50°C |
| Mounting method | Ceiling mount, Surface mount, No tools required |
| Width (mm) | 100 |
| Height (mm) | 100 |
| Length (Depth) (mm) | 45 |
| Net weight (kg) | 0.95 |
| Colour | White |
| Approvals | EN54-7, 0832-CPD-2026 |
| Enclosure | ABS |
Product Description
A reliable addressable photoelectric smoke sensor with high build quality.
The circles on the outside of the sensor help you to identify the sensor type even in high spaces.
The smoke sensors have no circle.
The sensor can be locked to the mounting base.
Packing info
| Packaging 1 length (depth) (mm) | 100 |
|---|---|
| Packaging 1 width (mm) | 100 |
| Packaging 1 height (mm) | 50 |
| Packaging 1 weight (kg) | 0.5 |
| Package size 1 | 1 |
| Package size1 GTIN code | 06418391001331 |
| Height of a pallet | 1.2 |
