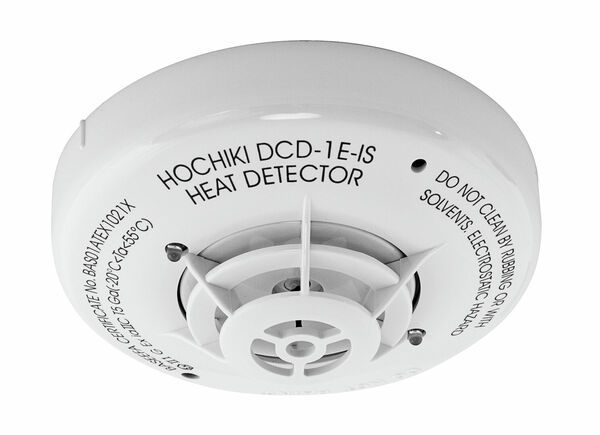

DCD-1E-IS/WHT ATEX classified heat detector DM
E-Number:
-
HVAC-Number:
-
Product code:
DCD-1E-IS/WHT
SKU:
8001679
This product cannot be purchased online. Please contact sales.
Specifications
| Detector type | Point detector |
|---|---|
| Operating voltage (VDC) | 12 — 30 |
| Operating current, normal (mA) | 0.4 |
| Operating current, max (mA) | 50 |
| Mounting method | Ceiling mount, No tools required |
| Width (mm) | 100 |
| Length (Depth) (mm) | 40 |
| Net weight (kg) | 0.097 |
| Colour | White |
Product Description
An ATEX classified DM heat detector for hazardous areas.
Complies with the ATEX classification II 1 G E Ex ia II C T5 when Tamb=55 °C
+60°C fixed temperature element
Packing info
| Packaging 1 length (depth) (mm) | 107 |
|---|---|
| Packaging 1 width (mm) | 107 |
| Packaging 1 height (mm) | 49 |
| Type metadata name here. | 9999 |
| Height of a pallet | 0.2 |
