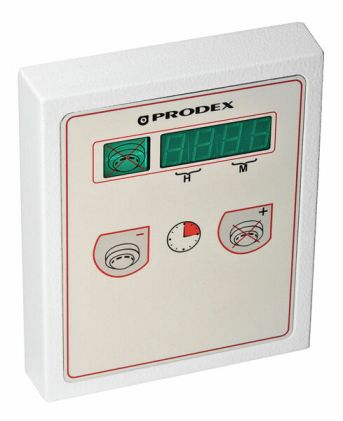

PRODEX-EIA Disconnection timer
E-Number:
-
HVAC-Number:
-
Product code:
PRODEX-EIA
SKU:
8001247
This product cannot be purchased online. Please contact sales.
Specifications
| Operating voltage (VDC) | 8-40 |
|---|---|
| Width (mm) | 125 |
| Height (mm) | 150 |
| Length (Depth) (mm) | 28 |
| Net weight (kg) | 0.694 |
| Colour | White |
Product Description
The disconnection timer can be used to disconnect smoke detectors. You can use, for example, a Flashni-24 VDC to signal the expiration of the disconnection time.
A disconnection timer for a smoke detector
Disconnection time: 30 min - 12 h (in 10 minute steps)
Internal buzzer
Connect to the panel with a CHQ-DIM (SCI) module (optional)
When you want to disconnect smoke detection from multi-criteria detectors, e.g. during pyrotechnic shows.
