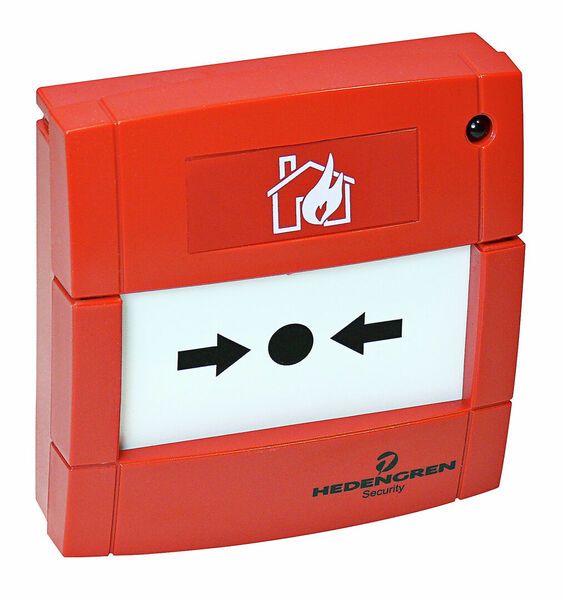

HCP-E/SCI Addressable call point
E-Number:
-
HVAC-Number:
-
Product code:
HCP-E/SCI(HED)
SKU:
8001229
This product cannot be purchased online. Please contact sales.
Specifications
| Detector type | Manual call point |
|---|---|
| Operating voltage (VDC) | 17-41 |
| Operating current, normal (mA) | 215 |
| Ingress protection (IP) | IP24 |
| Width (mm) | 88 |
| Height (mm) | 88 |
| Length (Depth) (mm) | 25 |
| Net weight (kg) | 0.125 |
| Colour | Red |
Product Description
An addressable call point with a short circuit isolator
To be flush mounted
A non-frangible plastic element
Built-in short circuit isolator
SR2G surface mounting back box (optional)
PS200/1670940 hinged call point cover (optional)
Packing info
| Packaging 1 length (depth) (mm) | 90 |
|---|---|
| Packaging 1 width (mm) | 95 |
| Packaging 1 height (mm) | 30 |
| Type metadata name here. | 99999 |
| Height of a pallet | 1.1 |
