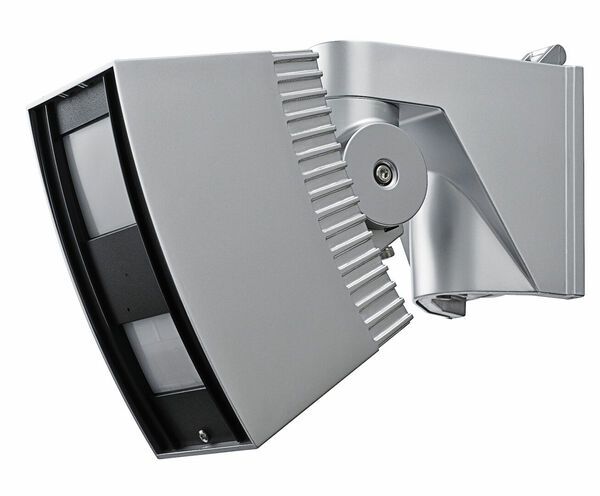

SIP-3020 Outdoor motion detector
E-Number:
-
HVAC-Number:
-
Product code:
08560 SIP-3020
SKU:
8001078
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 30 x 20 m |
|---|---|
| Sensorityyppi | 3 x PIR |
| Peittämissuoja | yes |
| Jalusta | Included |
| Net weight (kg) | 1.37 |
| Width (mm) | 102 |
| Height (mm) | 227 |
| Length (Depth) (mm) | 266 |
| Operating current, max (mA) | 35 |
| Ingress protection (IP) | IP55, IP65 |
| Operating temperature | -25 ... +60 C without a heater |
Product Description
Passive infrared detector for outdoors.
Detection range 30 x 20 m
Three dual pyro-elements with patented Double Conductive Shielding, anti-masking functionality
An anti-vandalism functionality with accelerometer
Adjustable detection area and sensitivity
Separate opening and closing contacts for alarm
