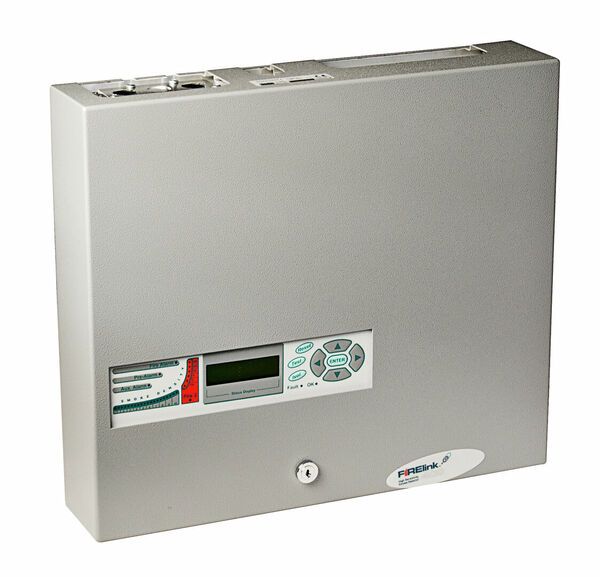

FIRELINK-400 Air sampling smoke detector with 1-4 pipes
E-Number:
-
HVAC-Number:
-
Product code:
1610040-00
SKU:
8000949
This product cannot be purchased online. Please contact sales.
Specifications
| Operating voltage (VDC) | 21.6-26.4 |
|---|---|
| Operating current, normal (mA) | 47024 |
| Width (mm) | 427 |
| Height (mm) | 372 |
| Length (Depth) (mm) | 95 |
| Net weight (kg) | 8.04 |
Product Description
For accurate and fast smoke detection air sampling smoke detector with 1-4 sampling pipes for monitoring a large area
An air sampling smoke detector with 4 x 50 m pipes.
The detector can be used with only 2 or 3 pipes.
When used with 3 pipes, each pipe is 75 m long.
When used with 2 pipes, each pipe is 100 m long.
Connects to an addressable loop with an APIC-CARD connection card.
Packing info
| Packaging 1 length (depth) (mm) | 565 |
|---|---|
| Packaging 1 width (mm) | 215 |
| Packaging 1 height (mm) | 490 |
| Type metadata name here. | 16 |
| Height of a pallet | 1.1 |
