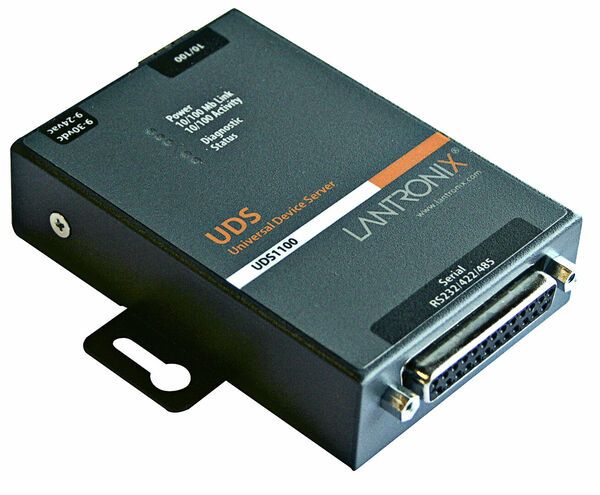

UDS-1100 External device server
E-Number:
-
HVAC-Number:
-
Product code:
UD110000201
SKU:
8000610
This product cannot be purchased online. Please contact sales.
Specifications
| Inputs | 1 |
|---|---|
| External interfaces | LAN, RS485, RS232 |
| Outputs | 1 |
| Net weight (kg) | 0.4 |
| Width (mm) | 90 |
| Height (mm) | 64 |
| Length (Depth) (mm) | 23 |
| Enclosure | metal |
| Operating voltage (VDC) | 9 - 30 |
| Operating voltage (VAC) | 230 |
| Operating current, normal (mA) | 1.5 |
| Operating current, max (mA) | 1.8 |
| Ingress protection (IP) | IP30 |
Product Description
Can be used as a network interface unit in almost any security system.
Includes both RS-232 and RS-485 ports.
10/100 Mbit/s network interface
Metal enclosure
Packing info
| Packaging 1 height (mm) | 115 |
|---|---|
| Packaging 1 width (mm) | 194 |
| Packaging 1 length (depth) (mm) | 230 |
| Height of a pallet | 0.7 |
| Type metadata name here. | 99999 |
