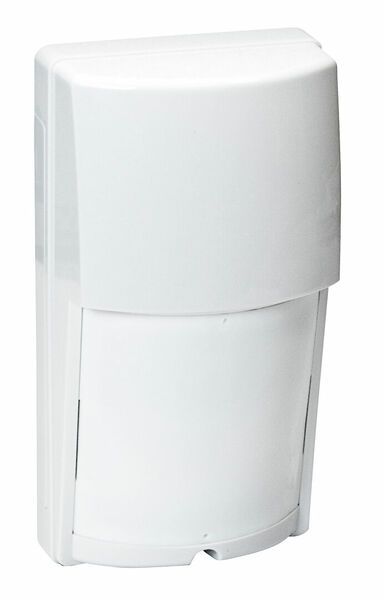

LX-402 Outdoor motion detector
E-Number:
-
HVAC-Number:
-
Product code:
08086 LX-402
SKU:
8000249
This product cannot be purchased online. Please contact sales.
Specifications
| Coverage | 15 x 12 m |
|---|---|
| Sensorityyppi | PIR |
| Alarm output | NC / NO, 0.2A 28 V DC |
| Net weight (kg) | 0.238 |
| Width (mm) | 75 |
| Height (mm) | 141 |
| Length (Depth) (mm) | 54 |
| Operating voltage (VDC) | 10.8 - 13.2 |
| Operating current, max (mA) | 25 |
| Ingress protection (IP) | IP54 |
| Operating temperature | -20°C...+50°C |
Product Description
Passive infrared detector for outdoors.
Detection range 12 x 15 m
Pet alley mode
Adjustable sensitivity
Pulse counter
Built-in photocell
Packing info
| Packaging 1 height (mm) | 80 |
|---|---|
| Packaging 1 width (mm) | 80 |
| Packaging 1 length (depth) (mm) | 115 |
| Height of a pallet | 0.6 |
| Type metadata name here. | 99999 |
