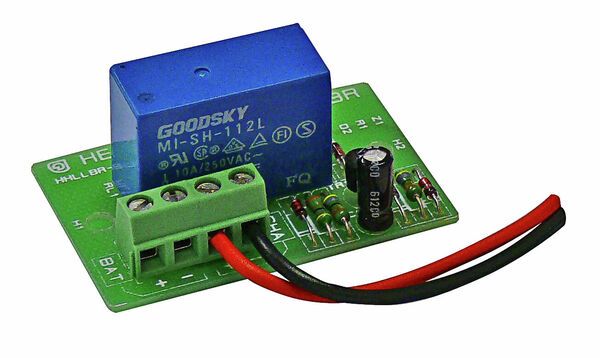

HHL-LBR Battery deep discharge protector
E-Number:
-
HVAC-Number:
-
Product code:
HHL-LBR
SKU:
8000079
This product cannot be purchased online. Please contact sales.
Specifications
| External connections | Battery input and output |
|---|---|
| Operating voltage (VDC) | 10.5 - 15 |
| Operating current, normal (mA) | 49 |
| Operating current, max (mA) | 49 |
| Operating temperature | +5 ... +40 C |
| Width (mm) | 35 |
| Height (mm) | 43 |
| Length (Depth) (mm) | 22 |
| Net weight (kg) | 0.02 |
Product Description
Monitors the batteries and disconnects the battery from the system when the battery voltage drops below 9.5 V.
Protects the battery from complete discharge
Resets automatically when the charging voltage is restored
Operating voltage 10.5 V
Packing info
| Packaging 1 length (depth) (mm) | 40 |
|---|---|
| Packaging 1 width (mm) | 30 |
| Packaging 1 height (mm) | 20 |
| Type metadata name here. | 99999 |
| Height of a pallet | 0.4 |
