AT-4103.02 Empty module box for installation of alarm, access and fire systems
E-Number:
-
HVAC-Number:
-
Product code:
4103.02
SKU:
7044360
This product cannot be purchased online. Please contact sales.
Specifications
| Ingress protection (IP) | IP44 |
|---|---|
| Width (mm) | 134 |
| Height (mm) | 152 |
| Length (Depth) (mm) | 50 |
| Net weight (kg) | 0.18 |
| Colour | White |
| Enclosure | White flame-retardant plastic (UL 94 U-0) |
Product Description

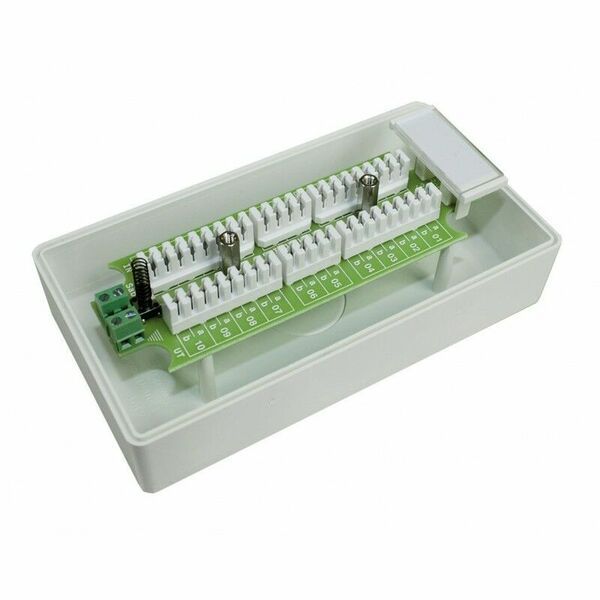

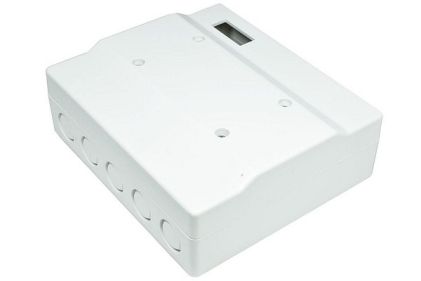

Empty module box for installation of alarm, access and fire systems.
Customized to fit all our terminal blocks eg.
1-3 pcs Terminal blocks with dimensions 116x40 mm.
1 pcs larger terminal block with dimensions 116x80 mm.
Incl. 4 spacers for installation of our terminal blocks.
The box is flame-retardant according to UL 94 V-0
Empty connection box for 1-3 modules
Slot connectors
Packing info
| Packaging 1 length (depth) (mm) | 170 |
|---|---|
| Packaging 1 width (mm) | 140 |
| Packaging 1 height (mm) | 55 |
| Packaging 1 weight (kg) | 0.277 |
| Package size 1 | 1 |
| Package size1 GTIN code | 7350037611032 |
| Height of a pallet | 0.6 |
Documents and links
