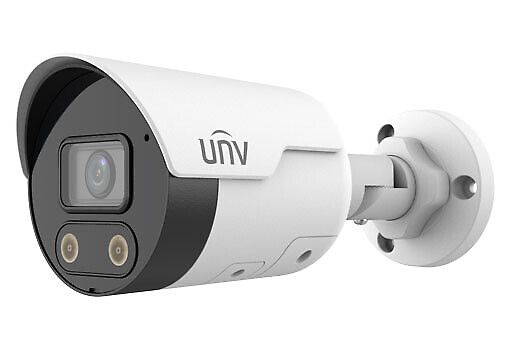

IPC2124SB-ADF28KM-I0 Unv IP Bullet Camera
E-Number:
-
HVAC-Number:
-
Product code:
IPC2124SB-ADF28KM-I0
SKU:
7044077
This product cannot be purchased online. Please contact sales.
Specifications
| Camera type | Bullet camera |
|---|---|
| Technology | IP |
| Outdoor installation | Yes |
| Resolution | 4 |
| Focal length min | 2.8 |
| Focal length max | 2.8 |
| Lens type | Fixed |
| IR range | 30m |
| Analog output | Yes |
| Ingress protection (IP) | IP67 |
| Impact protection (IK) | N/A |
| Width (mm) | 75 |
| Height (mm) | 74 |
| Length (Depth) (mm) | 191 |
| Net weight (kg) | 0.5 |
Product Description
The UNV Prime range includes products with advanced features for superior performance. the Prime- I series has enhanced hardware such as WDR, audio, alarm, SD cards. Available in a variety of mainstream resolutions, such a s 2/4/5/8MP
4MP, 1/2.7” progressive CMOS sensor
Color: 0.003 lux @ (F1.6, AGC ON), 0 lux IR
Fixed 2.8mm lens, 120dB WDR
Built-in microphone and speaker, I/O, IR lights 40 m
Sound and light alarm from video analytics
12 VDC, PoE, IP67, operating temperature-30 °C to 60 °C
Packing info
| Packaging 1 length (depth) (mm) | 210 |
|---|---|
| Packaging 1 width (mm) | 105 |
| Packaging 1 height (mm) | 110 |
| Packaging 1 weight (kg) | 0.52 |
| Height of a pallet | 1.1 |
