4E-AM448 4E-AM448
E-Number:
-
HVAC-Number:
-
Product code:
4E-AM448
SKU:
7000470
This product cannot be purchased online. Please contact sales.
Specifications
| Net weight (kg) | 0.3 |
|---|
Product Description

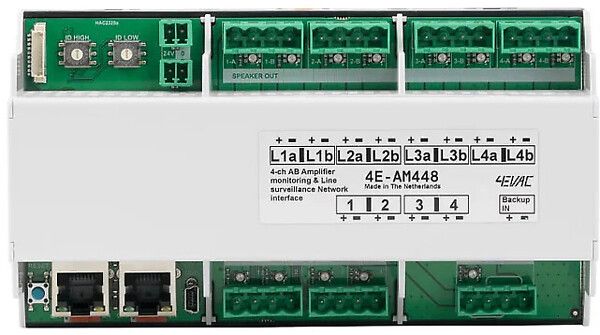

4EVAC AM448 is a DIN-rail mounted surveillance
box with 4 amplifier inputs and 4 A/B loudspeaker
outputs, dedicated for Impact SW and Impact MM
voice evacuation systems. AM448 is also the
backup amplifier manager, and therefore features
additional backup amplifier input, which is shared
by all 4 primary amplifier inputs.
AM448 is meant to be installed inside a closed
cabinet of IP30 rating (or higher) together with the
power amplifier. Alternatively, it is possible to install the AM448 in a IP30 housing placed in a remote
location to the main system rack.
DIN-RAIL
RS485 datalink
Max. load: 500W per channel
Redundant L-Net link, 2xRJ45
Addressable: 0-255
