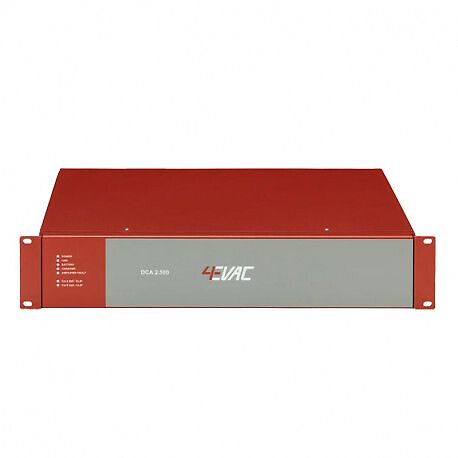

DCA2.500 2 channels power amplifier
This product cannot be purchased online. Please contact sales.
| Operating voltage (VAC) | 230 V |
|---|---|
| Ingress protection (IP) | IP30 |
| Operating temperature | -5 ~ 40°C |
| Installation | 19” rack mounted, 2U |
| Width (mm) | 483 |
| Height (mm) | 88 |
| Length (Depth) (mm) | 340 |
| Net weight (kg) | 8 |
| Colour | Black, Red |
| Enclosure | Steel |
4EVAC DCA2.500 is a 2x500W transformer-less (Direct-drive) 100V power amplifier with integrated power
supply and 24V battery charger. Designed and certified in full compliance with EN54-4 and EN54-16,
DCA2.500 is an ideal component of a voice evacuation system or public address installation, where high
reliability and safety is required.
The primary application of the DCA2.500, using the 4EVAC proprietary AMP LINK protocol, is to work as a
native component of the 4EVAC Impact voice evacuation system. However, thanks to the I/O interface and
built-in autonomous functions, DCA2.500 can be easily integrated with any third-party PA/VA matrix
controller, adding a complete, EN54-4 certified power supply, with a charging capacity of 100Ah.The
DCA2.500 may also be used as a standalone power amplifier or battery charger, without any external
control devices.
AMP-link with 2 prioritised audio streams
Audio input for local source - Ch A / Ch B
Input signal protection (gain control)
Volume attenuation for local source
Volume attenuation for CH A / B
2 x 500 W, 20 Ω / bridged 1 x 1000 W, 10 Ω
EN54-16 & EN54-4
RAL3011
