CONTROLLER Controller
This product cannot be purchased online. Please contact sales.
| Operating voltage (VDC) | 24 V |
|---|---|
| Ingress protection (IP) | IP30 |
| Operating temperature | -5 ~ 40°C |
| Installation | 19” rack mounting |
| Width (mm) | 483 |
| Height (mm) | 44 |
| Length (Depth) (mm) | 340 |
| Net weight (kg) | 2 |
| Colour | Black, Red |
| Enclosure | Steel |

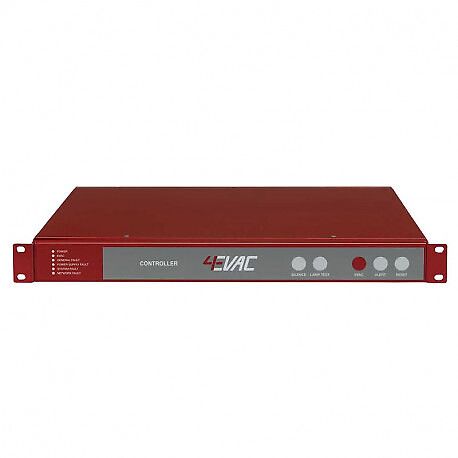

4EVAC Controller is the head unit of the 19” rack mounted Impact Voice Evacuation System. The Controller covers complete EN54-16 certified functionality, as well as a variety of features essential to Public Address applications. 4EVAC Controller incorporates 16 monitored contact inputs; 8 GPO, 4 relay outputs, 2 analogue audio inputs and 2 outputs. In addition, local network interfaces for max. 16 local peripheral devices (e.g. mic consoles) and 2 global network ports for interconnecting multiple systems in a redundant ring topology are included. The Controller is designed to work with 4EVAC DCA2.500 power amplifiers over a 4EVAC proprietary AMP LINK protocol. The Controller can also be easily integrated with any third-party PA/VA power amplifier.
Max 96 zones
Max 22 audiofiles x 5min each
Controls: EVAC and ALERT. RESET, SILENCE, LAMPTEST
Local Audio Network: 3x L-Net
Global Audio Network: 2x G-Net
16-EVAC input
8-GPO
EN54-16
