CHQ-CB/WHT/RL Adr. blixtljus EN-54 takmontge
Product code:
CHQ-CB/WHT/RL
Varenummer:
8002467

Spesifikasjoner
Bredde (mm) | 100 |
---|---|
Høyde (mm) | 41 |
Lengde (Dybde) (mm) | 41 |
Driftspenning (VDC) | 17 — 41 |
Strømforbruk, normal (mA) | 0.3 |
Produkt beskrivelse

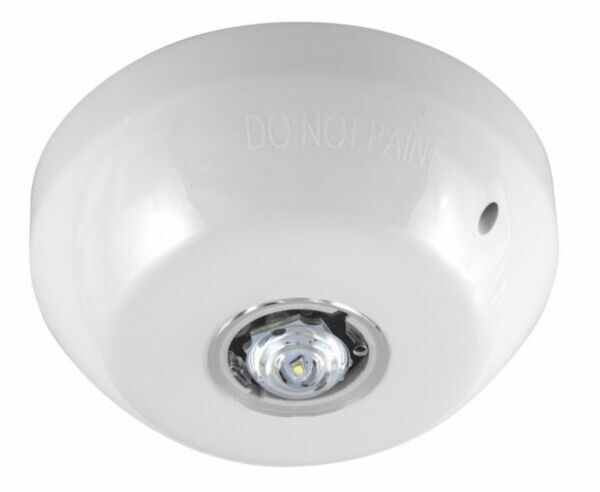

An Addressable Loop-Powered Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m diameter. The unit is designed to fit the YBN-R/3 and YBN-R/3(SCI) bases or the YBO-BS Base Sounder Beacon. This model features an ivory case and white LEDs.
Kategori C-3-7.5m (montasjehøyde 3m, yta 7.5m diameter
Kan installeras med extern strömkälla
EN54-23 godkjent C-rated
Relaterade produkter: YBN-R/3/WHT, YBN-R/3/SCI/WHT
Tillbehör:


Packing info
Mengde pallepakke | 99999 |
---|---|
Baseenhetens høyde (mm) | 110 |
Baseenhetens bredde (mm) | 47 |
Baseenhetens lengde (mm) | 110 |
Height of a pallet | 0.6 |
